  • No problem at narrow space

  • Compact size

With minimal space like desk top or limited area, installation is possible due to compact and handy design.

​

​

​

​


  • User Interface Designed for Users

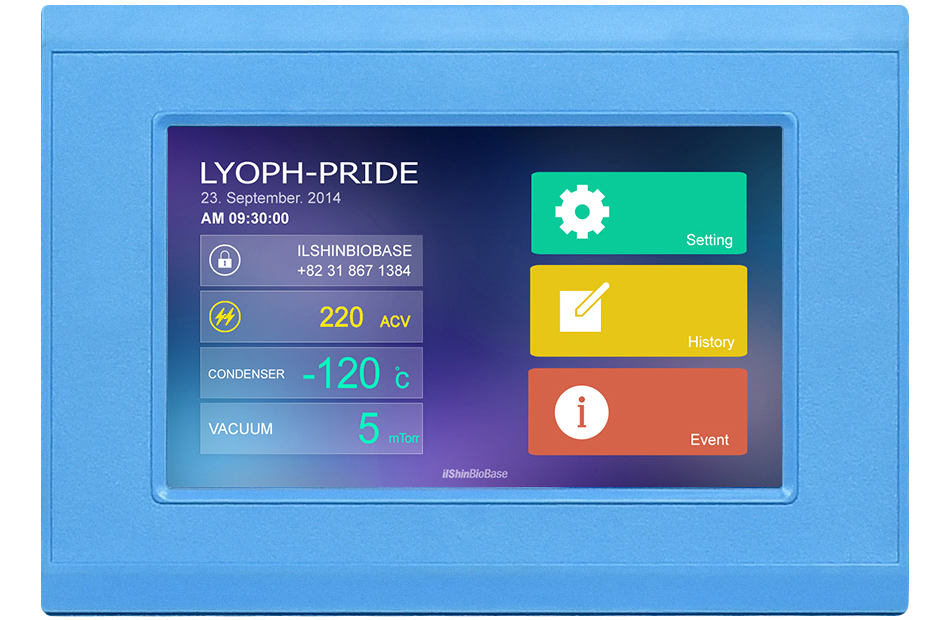

  • 7” TFT LCD Touch Screen


  • 10cab606d36ff12a0b0ca6b3dfcbc391_1570628784_6865.jpg


    Operation monitoring window
    Menu window for parameter set up, manager information, operation status and alarm events. Security control by password is available.

  • 10cab606d36ff12a0b0ca6b3dfcbc391_1570628953_8755.jpg


    Operation set up window
    Automatic/manual selection and all parameter value can be controlled. Drying process and lead time are displayed. Engineering parameter setup is available by authorized manager password

  • 10cab606d36ff12a0b0ca6b3dfcbc391_1570629056_4313.jpg


    Trend window
    Graphic display of condenser temperature and vacuum level is provided. USB data download is available.

  • 10cab606d36ff12a0b0ca6b3dfcbc391_1570631504_6867.jpg


    Event window
    All events during process are reported.

  • Control function

    - Operation status can be monitored by PC through RS/232(485) communication port.

    - Data management by USB (Touch optional) Drying time record is stored. Vacuum pump usage time is recorded for timely maintenance. - Parameter unit is convertible for user's convenience.

    (Easy generation of various test reports./Unit conversion function
    (℃ <> >℉, mTorr <> mBar )

    - Line voltage is displayed for protection of machine.
    (Low/high voltage).

  • Fast & Easy

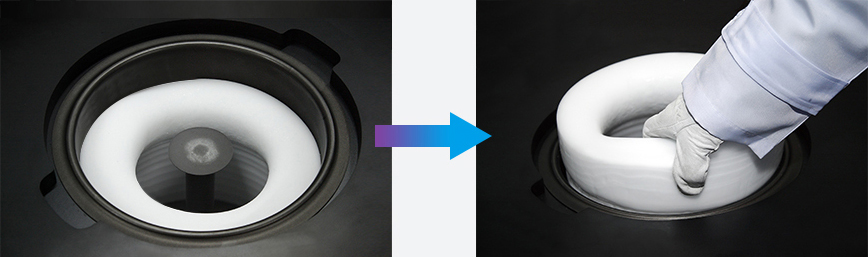

  • Defrosting system

Condensed ice must be removed within 30 minutes for continuous operation and for preventing contamination.
Condenser foams round type ice at below -80℃, easy to be removed from condenser chamber even under process of defrosting so next operation is promptly ready.
PTFE coating is standard feature for protection from contamination or corrosion by acid or chemical substance.




  • More convenient

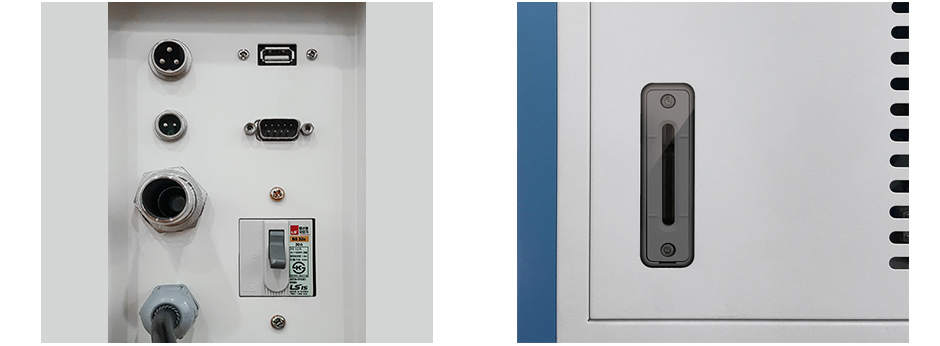

  • Remote Access & Observation Window

Connectable with PC by serial port. Available for monitoring temperature, vacuum level and operation status. Cloudiness of vacuum oil can be observed through the window for timely maintenance and for long term use.




  • All in one freeze-drying

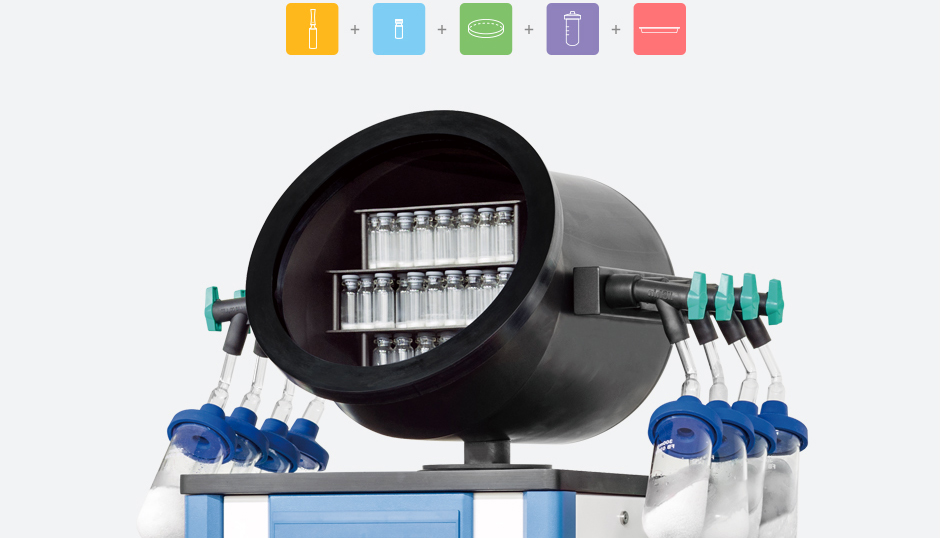

  • Multi drying chamber

Freeze Drying is executed under various environments and observation for the process is necessary..

New Multi Drying Chamber can be applied with various containers such as “Serum bottle, ampoule, complete flask, Petri dish and/or bulk tray”. Therefore various applications are possible and loading/unloading is convenient.

It is easy to observe drying process and addition of freeze drying in the process is possible.

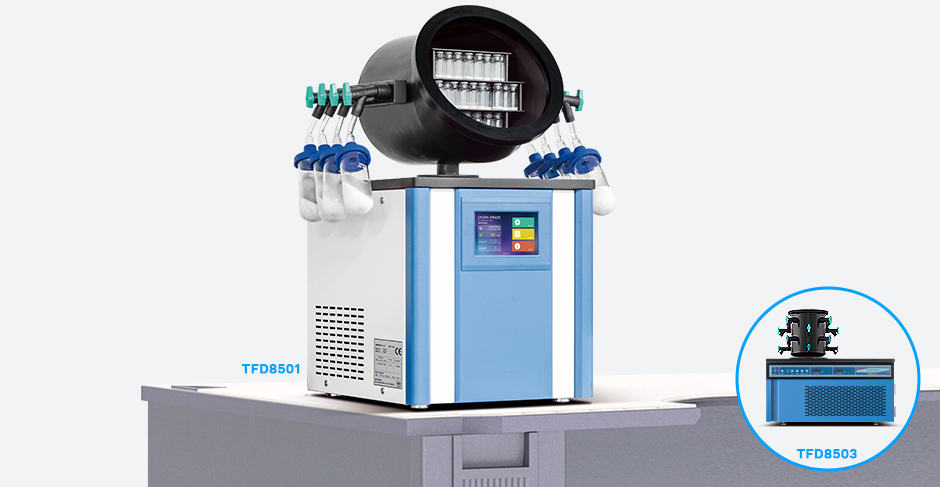

Labscale Table Top FREEZE DRYER
